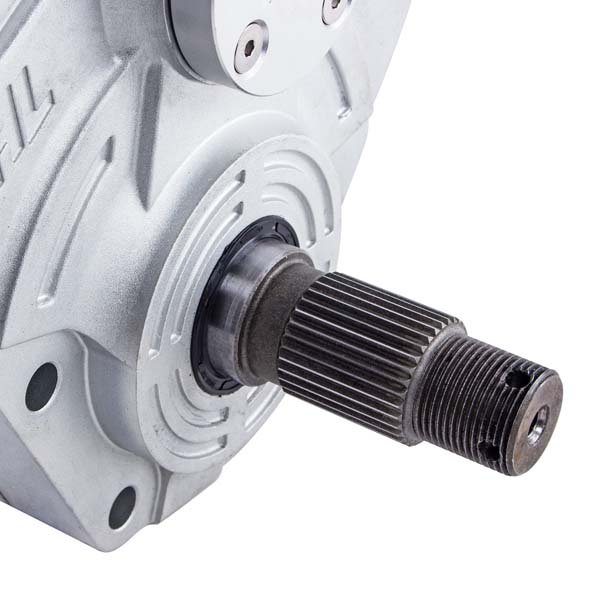

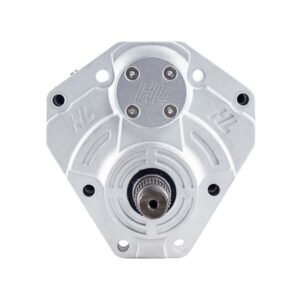

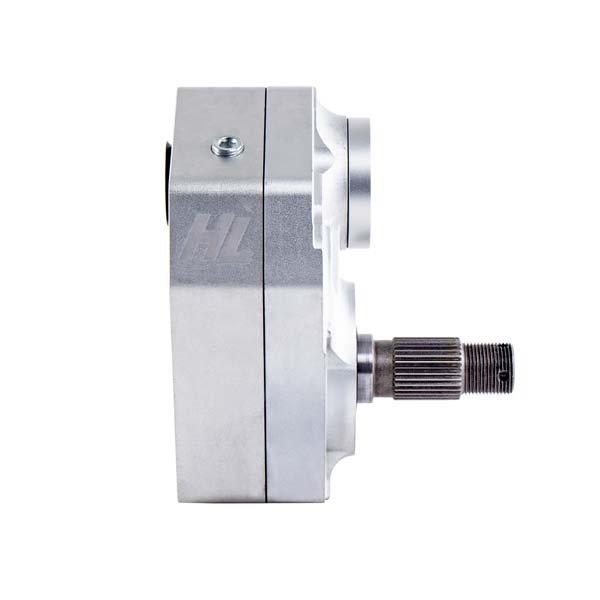

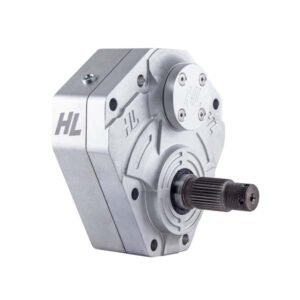

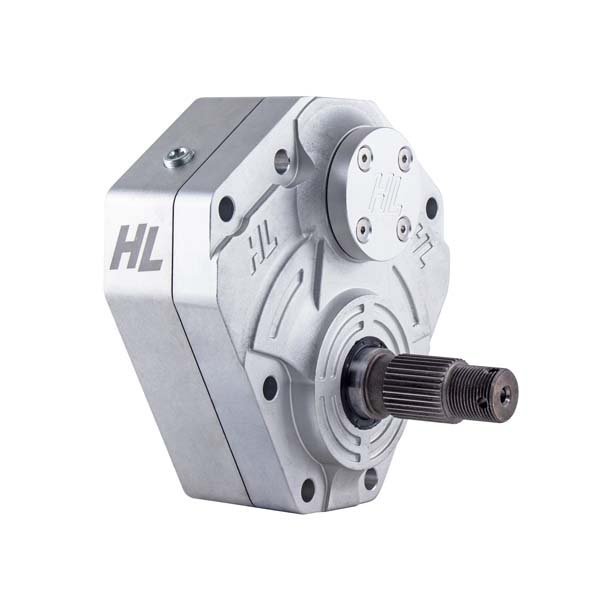

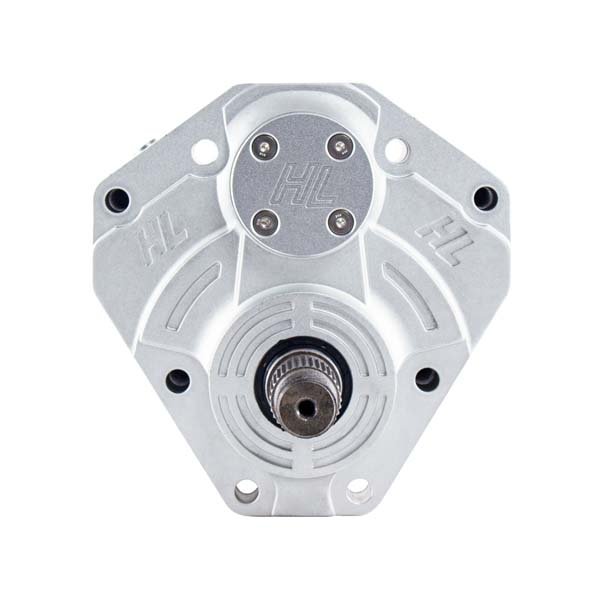

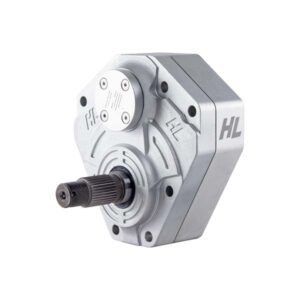

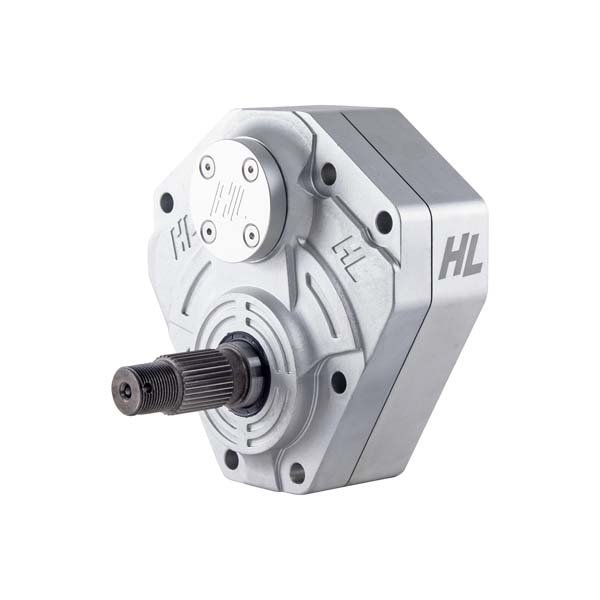

Can-Am Maverick X3 4″ Portal Gear Lift – 30% Dual Idler

Can-Am Maverick X3 4″ Portal Gear Lift – 30% Dual Idler Gear Reduction

The Can-Am Maverick X3 4″ Portal Gear Lift from High Lifter is engineered to deliver maximum ground clearance, torque multiplication, and drivetrain protection for serious off-road riders. Designed specifically for the Maverick X3 platform, this heavy-duty portal lift raises your machine by 4 inches while providing a powerful 30% dual idler gear reduction that dramatically increases wheel torque and improves overall performance in mud, rocks, and extreme terrain.

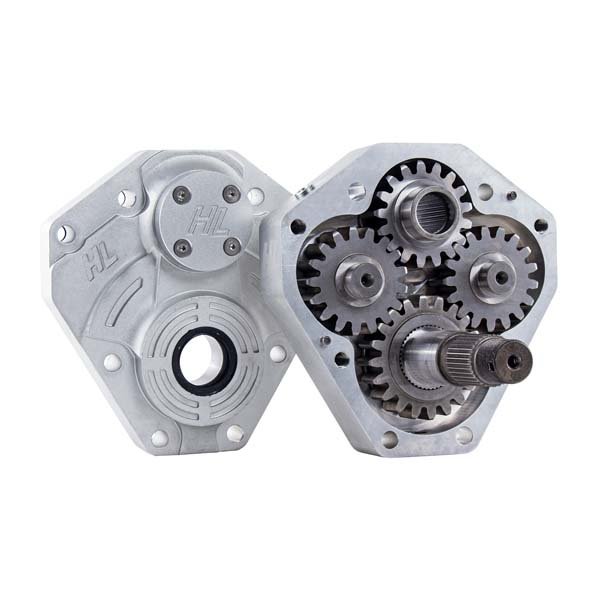

This advanced dual idler portal gear system spreads the load across more gear teeth, doubling the contact area and reducing stress on drivetrain components. The result is smoother torque transfer, reduced belt wear, fewer broken axles, and improved reliability when running larger tires or pushing your Maverick X3 through demanding off-road environments.

Key Features

• 4 Inch Portal Lift – Adds significant ground clearance for mud riding and rock crawling.
• 30% Dual Idler Gear Reduction – Increases torque output while reducing drivetrain strain.
• Forged Portal Gear Boxes – Stronger than cast or billet aluminum housings used by competitors.
• Dual Idler Gear Design – Doubles gear contact area to reduce stress and increase durability.
• Precision Ground Stainless Steel Rotors – Slotted rotors improve braking performance and cooling.
• Triple Seal Input Shaft – Includes a wiper seal for superior protection against dirt and water.
• Dual Oil Seals on Spindle Shaft – Provides extra sealing area to prevent oil leaks.
• Kevlar Fiber Gaskets – High-density gaskets that resist oil, coolant, and heat.
• Heavy-Duty Steel Backing Plates – 5/16″ reinforced steel plates with welded gussets for strength.
• CNC Precision Machined Gears – Heat-treated alloy steel gears ensure smooth operation and long service life.

Performance Advantages

The Can-Am Maverick X3 4″ Portal Gear Lift provides more than just additional ride height. The built-in gear reduction multiplies torque at the wheels, allowing your UTV to maintain power even with oversized tires. This significantly reduces strain on belts, axles, differentials, and driveshafts while improving overall drivetrain efficiency.

Another major benefit is improved engine braking. The portal gear reduction reduces the need for constant braking when descending hills, which helps extend brake life and provides better control in steep or technical terrain.

Heavy-Duty Portal Gearbox Construction

• Forged portal gear housings for superior strength
• Optional gearbox venting design for cooling
• Controlled gear lapping for quieter operation
• Precision stainless rotors for reliable braking
• Industrial-grade seals and Kevlar gaskets for long-term durability

Tire Fitment

• Largest tire with portal lift: 33″
• Largest tire with forward arms: 35″

Tire fitment may vary depending on tire brand, suspension setup, and additional modifications. Always verify your configuration before purchasing.

Wheel Requirements

• Minimum wheel size: 14″
• 14″ factory wheels require a 1″ spacer
• 14″–15″ wheels: Maximum 4.5″ backspacing
• 16″ or larger wheels: Maximum 5″ backspacing

Vehicle Compatibility

This Can-Am Maverick X3 4″ Portal Gear Lift is designed to fit a wide range of Maverick X3 models including:

• 2017–2026 Can-Am Maverick X3 Turbo models
• Can-Am Maverick X3 Turbo R and Turbo RR
• Maverick X3 DS, RS, X DS, X RS models
• Maverick X3 X MR and X RC editions
• Maverick X3 Smart-Shox models
• Maverick X3 64″ and 72″ width platforms
• Maverick X3 900 HO

Why Choose the High Lifter Portal Gear Lift?

The High Lifter Can-Am Maverick X3 4″ Portal Gear Lift is built for riders who demand extreme durability and serious off-road capability. With forged gearboxes, dual idler gear technology, and precision-machined components, this professional-grade portal lift system provides the strength, torque, and reliability needed for aggressive riding, mud builds, and high-performance Maverick X3 setups.

If you’re upgrading your UTV for larger tires, deeper mud, or extreme trail riding, this portal gear lift delivers the clearance and torque multiplication needed to push your Maverick X3 further than ever.

Cross-reference part/SKU numbers: PGL-430DI-CMX3, 73-14471
