Portal Gear Lift 4 Inch STD Cab Maverick Sport Defender Commander – 15% Dual Idler

Portal Gear Lift 4 Inch STD Cab Maverick Sport Defender Commander – 15% Dual Idler

The Gear Lift 4 Inch STD Cab Maverick Sport system from High Lifter is engineered for riders who demand increased ground clearance and balanced torque performance. Designed specifically for standard cab Can-Am Maverick Sport, Defender, and Commander models, this heavy-duty portal gear lift provides a true 4-inch lift combined with a 15% dual idler gear reduction.

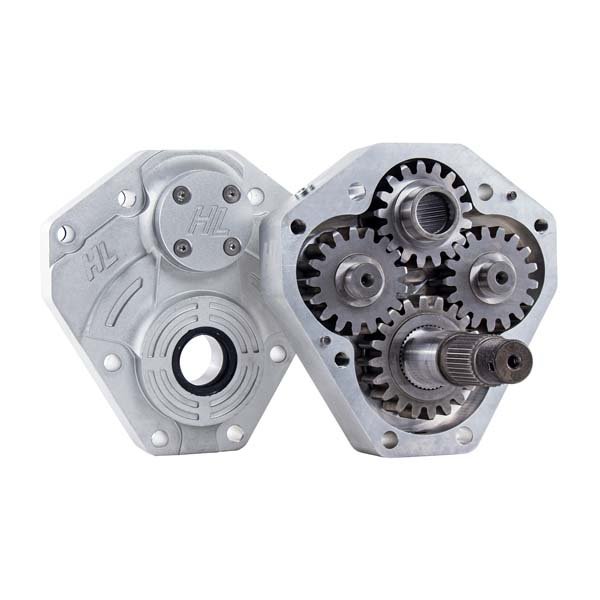

This upgraded dual idler gearbox spreads load across twice as many gear teeth, doubling surface contact and reducing internal stress by half. The result is smoother torque transfer, improved drivetrain reliability, and reduced wear on belts, axles, differentials, and driveshafts.

15% Dual Idler Performance Advantage

• 15% gear reduction – Ideal balance of added torque while maintaining usable ride speed.
• Dual idler gear design – Increased tooth engagement reduces gear stress.
• Improved engine braking – Extends brake life and improves downhill control.
• Reduced drivetrain strain – Helps prevent premature component failure.

If you are running larger tires but still want responsive trail or worksite performance, this reduction ratio delivers dependable power without sacrificing drivability.

Forged Gear Box Construction

This Portal Gear Lift 4 Inch STD Cab Maverick Sport Defender Commander – 15% Dual Idler features forged aluminum housings that are significantly stronger than cast or billet alternatives. Forging produces a denser, tougher structure capable of handling shock loads in mud, rocks, and demanding terrain.

• Heat-treated alloy steel gears
• CNC precision-ground machining
• Controlled gear lapping for smoother, quieter operation

Advanced Sealing & Protection

• Dual oil seals on spindle shaft for 100% more sealing area
• Triple-sealed input shaft with integrated wiper seal
• High-density Kevlar fiber gaskets (oil and coolant resistant)
• Optional gearbox venting capability for improved cooling

This multi-layer sealing system prevents water intrusion and oil leaks even in harsh mud environments.

Technical Specifications

• Lift Height: 4 Inches
• Gear Reduction: 15% Dual Idler
• Portal Boxes Included: 4
• Maximum Tire Size (Portals Only): 33”
• Maximum Tire Size (With Forward Arms): 35”
• Minimum Wheel Size: 14”
• 14” factory wheels require 1” spacer
• 14–15” wheels: Max 4.5” backspacing
• 16”+ wheels: Max 5” backspacing

Vehicle Compatibility

Fits 2019–2026 Can-Am Maverick Sport (STD Cab), Defender (non-MAX), and Commander (non-MAX) models including DPS, XT, XT-P, Limited, PRO, and X MR trims.

Upgrade your machine with this Gear Lift 4 Inch STD Cab Maverick Sport portal system and experience improved clearance, balanced torque multiplication, and heavy-duty durability built for serious off-road performance.

Cross-reference part/SKU numbers: PGL-415DI-C1DMC
