ATV UTV Alignment Kit for Camber & Toe Adjustment
The High Lifter Alignment Kit is a professional-grade solution designed to accurately measure and adjust camber and toe on your ATV or UTV. Whether you’re replacing suspension components or correcting steering issues, this precision-engineered kit allows you to perform alignment adjustments in your garage or even on the trail.
Unlike traditional tire-based methods, this kit uses hub-mounted alignment plates to deliver superior accuracy. Combined with a digital angle finder and included measuring tools, it provides a complete and reliable alignment system for off-road vehicles.
Key Features

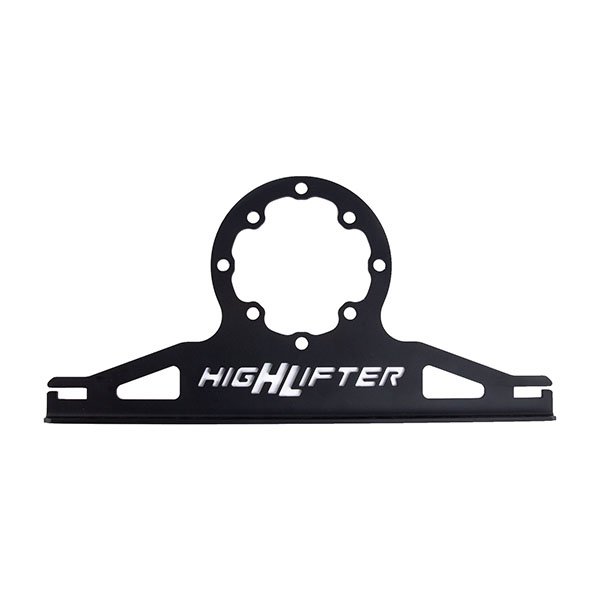

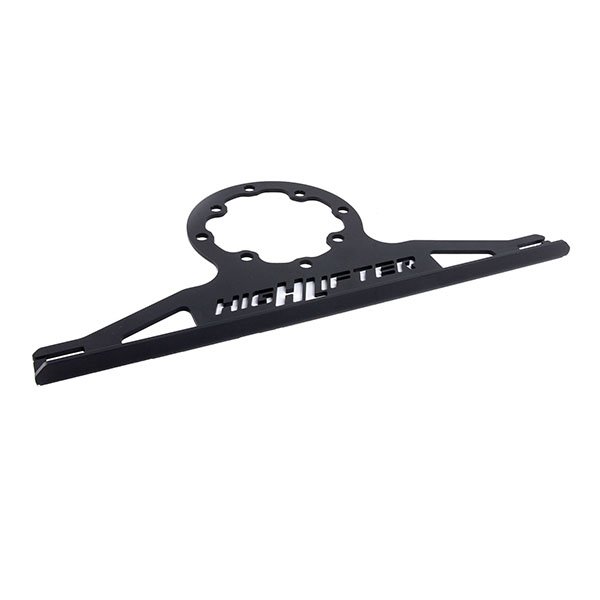

- Hub-Mounted Alignment Plates: Direct-to-hub measurement ensures maximum accuracy compared to tire-based tools
- Digital Camber Gauge: Magnetic angle finder with 0.1° accuracy for precise camber adjustments

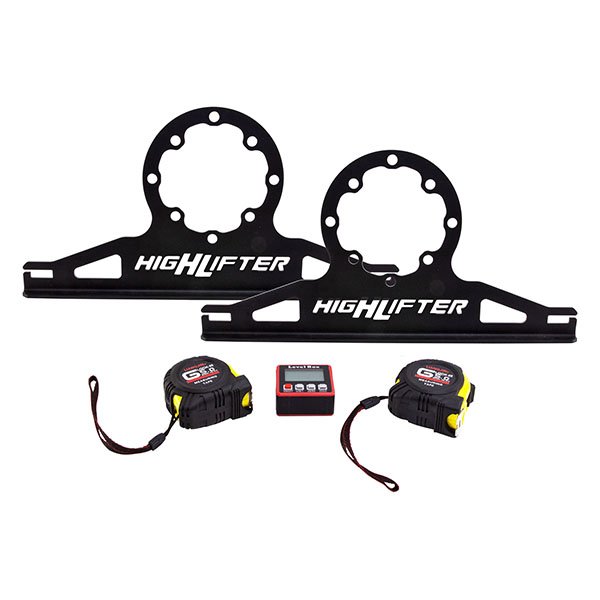

- Complete Kit: Includes alignment plates, 2 tape measures, and digital gauge for full toe & camber setup

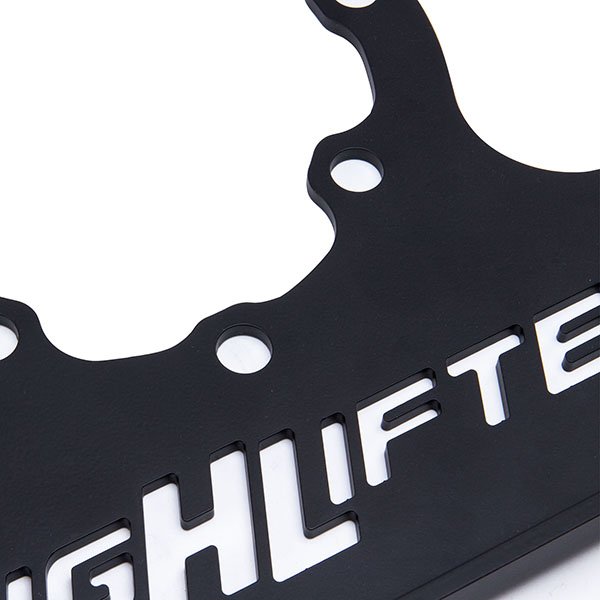

- Heavy-Duty Construction: Powder-coated steel plates for long-lasting durability and corrosion resistance
- Easy DIY Use: Simple bolt-on installation using existing lug nuts
- Fast Calibration: Works accurately even on uneven surfaces
Technical Specifications
- Product Type: ATV / UTV Alignment Tool Kit
- Measurement Type: Camber & Toe
- Camber Accuracy: ±0.1 Degrees
- Material: Heavy-Duty Steel
- Finish: Powder-Coated
- Installation: Bolt-On (Hub Mounted)
Compatibility / Fitment
- Bolt Patterns: 4/137, 4/156
- Stud Sizes Supported:
- 10mm x 1.25
- 12mm x 1.25
- 12mm x 1.5
- 3/8-24
- Fits most ATV & UTV models (Polaris, Can-Am, Yamaha, Kawasaki & more)
Applications
- Aligning wheels after replacing tie rods, control arms, or ball joints
- Correcting steering wheel misalignment
- Fixing uneven tire wear patterns
- Eliminating steering pull issues
- Fine-tuning suspension setup for off-road performance
Why Choose This Alignment Kit?
This High Lifter Alignment Kit is built for riders who demand precision and performance. Its hub-based measurement system eliminates guesswork, delivering accurate results every time. Whether you’re a weekend rider or a serious off-road enthusiast, this kit helps extend tire life, improve handling, and reduce wear on critical suspension components.
Save time and money by performing professional-level alignments yourself—anytime, anywhere.
Note: This item is non-refundable. Please verify fitment before purchase.
Click Here For Installation Instruction (PDF)
Cross-reference part/SKU numbers: HL-TOOL-AK UTD, 54-60868
