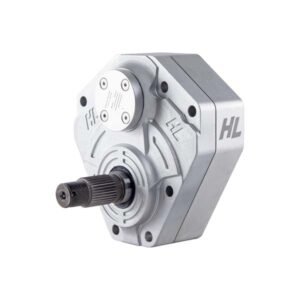

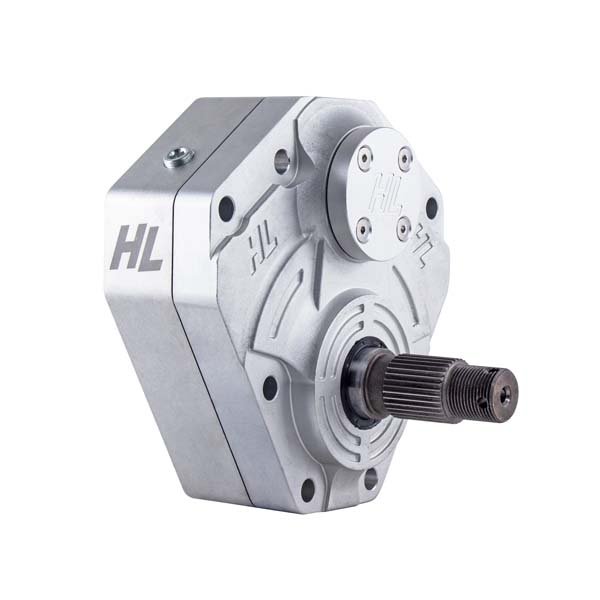

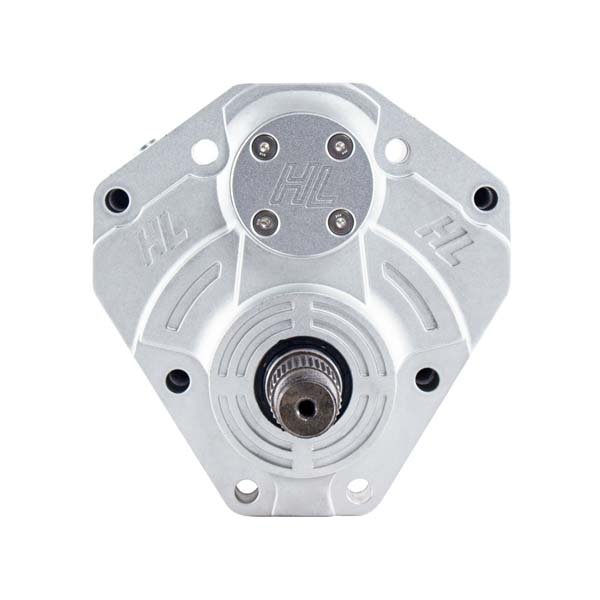

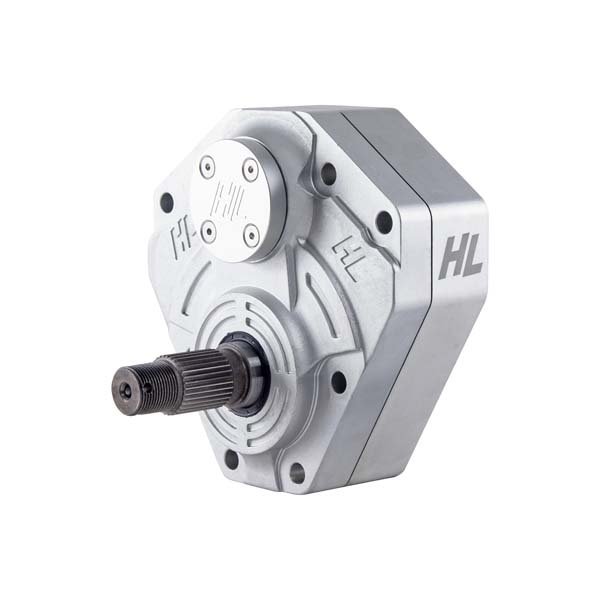

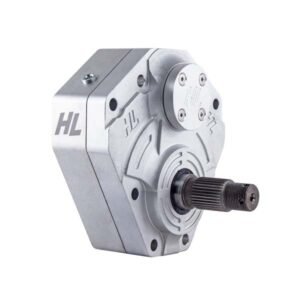

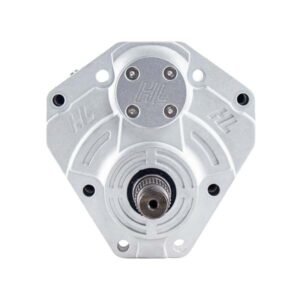

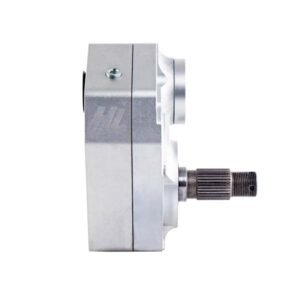

4 Inch Portal Gear Lift Kit for Maverick X3 MAX – 15% Dual Idler

Gear Lift Kit for Maverick X3 MAX – 4 Inch Dual Idler Portal System

The High Lifter 4 Inch Portal Gear Lift Kit for Maverick X3 MAX is engineered to deliver increased ground clearance, improved torque, and extreme durability for serious off-road riders. Designed specifically for Can-Am Maverick X3 MAX models, this heavy-duty portal system allows you to run larger tires while protecting critical drivetrain components.

This gear lift kit for Maverick X3 MAX features a 15% dual idler gear reduction that distributes load across twice as many gear teeth. The advanced dual idler gear design significantly reduces drivetrain stress while improving torque transfer, helping prevent belt failures, axle damage, and drivetrain wear during aggressive riding.

Whether you’re tackling deep mud, rocky terrain, or high-speed desert trails, this 4 inch gear lift kit for Maverick X3 MAX delivers the clearance and strength needed to push your Can-Am Maverick to the next level.

Key Features

• 4 Inch Portal Gear Lift – Increases ground clearance for extreme off-road capability.
• 15% Dual Idler Gear Reduction – Improves torque while reducing drivetrain stress.

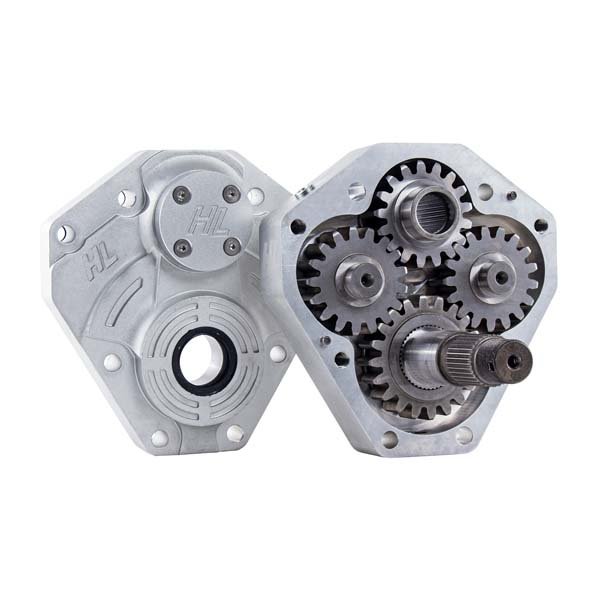

• Dual Idler Gear System – Spreads load across twice the gear teeth to reduce wear.
• Forged Portal Gear Boxes – Stronger than cast or billet aluminum housings.
• Precision Ground Stainless Steel Brake Rotors – Improves braking performance and heat dissipation.
• Kevlar Fiber Gaskets – Oil and coolant resistant materials requiring no additional sealant.

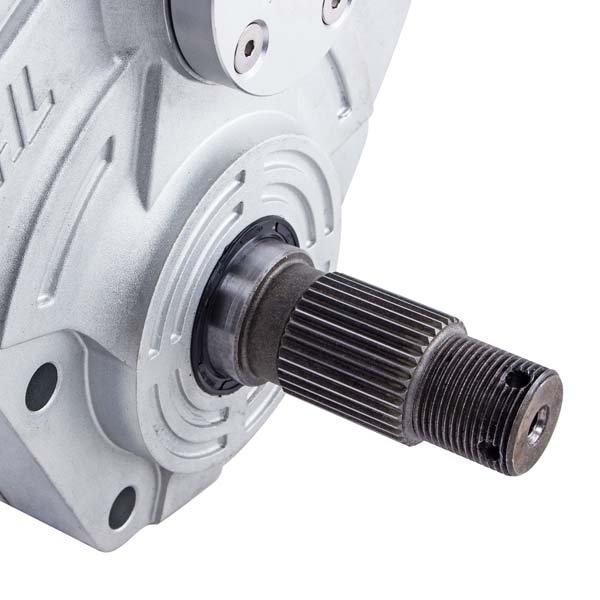

• Triple Seal Input Shaft – Helps prevent water intrusion and oil leaks.
• Heavy-Duty 5/16″ Steel Backing Plates – Reinforced with welded gussets and bent flanges.
• Optional Gearbox Venting – Helps reduce heat buildup and extend seal life.

Technical Specifications

• Lift Height: 4 Inches
• Gear Reduction: 15% Dual Idler
• Gear Material: Heat-treated alloy steel
• Gear Box Construction: Forged housing
• Rotor Material: Precision ground stainless steel
• Backing Plate: Heavy-duty 5/16″ steel
• Seal System: Dual spindle seals and triple input shaft seal
• Kit Includes: Four portal gear boxes

Tire Fitment

• Maximum Tire Size with Portal: 33 inches
• Maximum Tire Size with Forward Arms: 35 inches

Wheel Requirements

• Minimum Wheel Size: 14 inches
• 14 inch factory wheels require a 1 inch spacer
• 14 and 15 inch wheels cannot exceed 4.5 inch backspacing
• 16 inch or larger wheels cannot exceed 5 inch backspacing

Vehicle Compatibility – Can-Am Maverick X3 MAX

This gear lift kit for Maverick X3 MAX is designed for multiple Can-Am Maverick X3 MAX models from 2017–2026, including Turbo, Turbo R, Turbo RR, Smart-Shox, DS, RS, X RS, X MR, and X RC models.

Compatible models include Maverick X3 MAX DS Turbo, Maverick X3 MAX RS Turbo RR, Maverick X3 MAX X MR Turbo RR, Maverick X3 MAX X RC Turbo RR, Maverick X3 MAX X RS Turbo RR Smart-Shox, and other Maverick X3 MAX variants.

Why Choose This Gear Lift Kit for Maverick X3 MAX?

The High Lifter Gear Lift Kit for Maverick X3 MAX is built for riders who demand durability, reliability, and maximum off-road performance. With forged portal gear boxes, advanced sealing technology, and torque-enhancing dual idler gears, this lift system improves ground clearance while protecting critical drivetrain components.

If you want to run larger tires, improve torque delivery, and upgrade your Can-Am Maverick X3 MAX for extreme terrain, this 4 inch gear lift kit for Maverick X3 MAX delivers the strength and performance serious riders expect.

Cross-reference part/SKU numbers: PGL-415DI-CMX3-1, 73-14455
