4 Inch Portal Gear Lift Kit for Maverick X3 – 15% Dual Idler

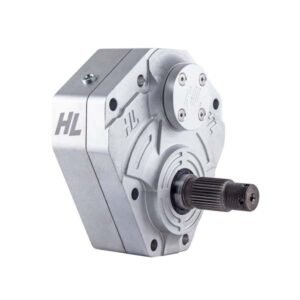

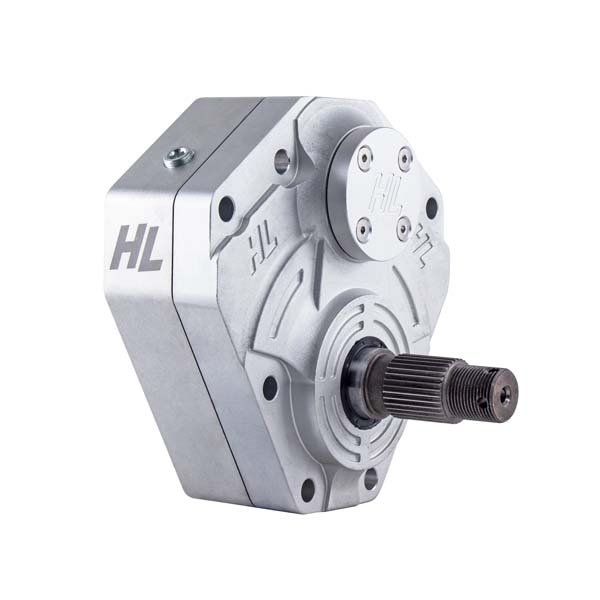

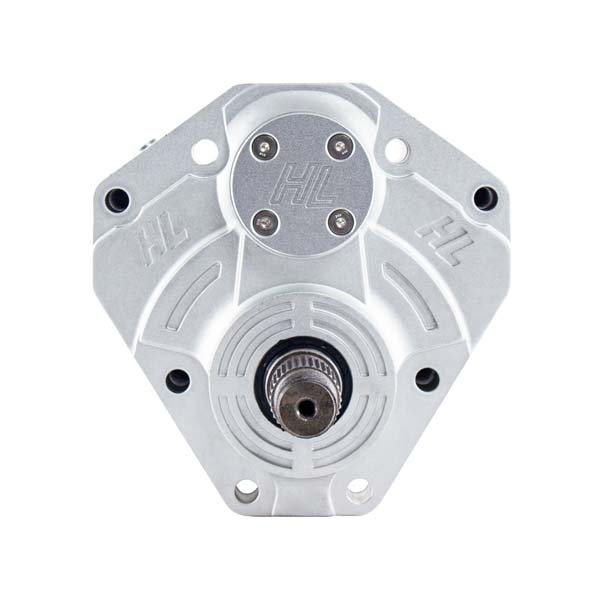

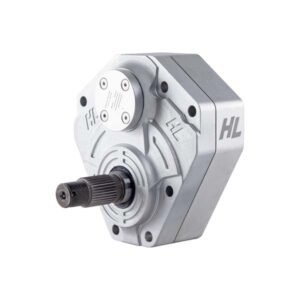

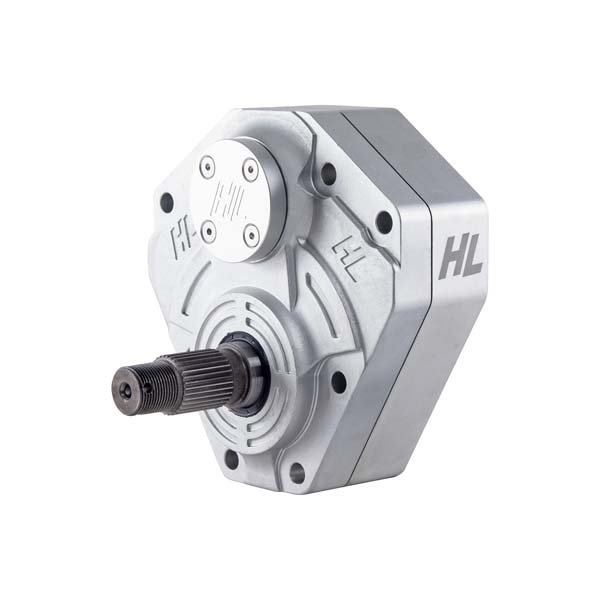

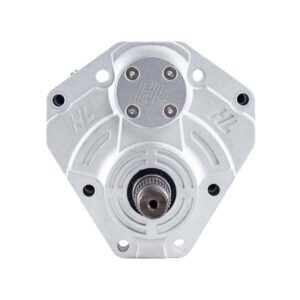

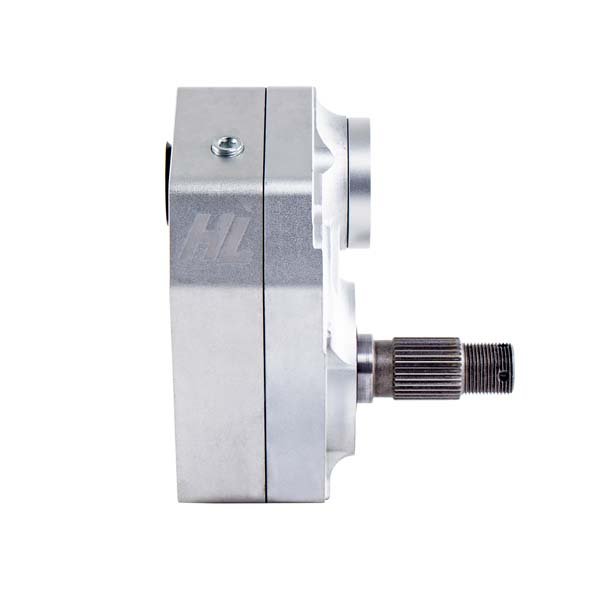

Portal Gear Lift Kit for Maverick X3 – 4 Inch Dual Idler Portal System

The High Lifter 4 Inch Portal Gear Lift Kit for Maverick X3 is engineered to deliver increased ground clearance, improved torque, and extreme durability for demanding off-road terrain. Designed specifically for Can-Am Maverick X3 models, this heavy-duty portal gear lift allows riders to run larger tires while protecting critical drivetrain components.

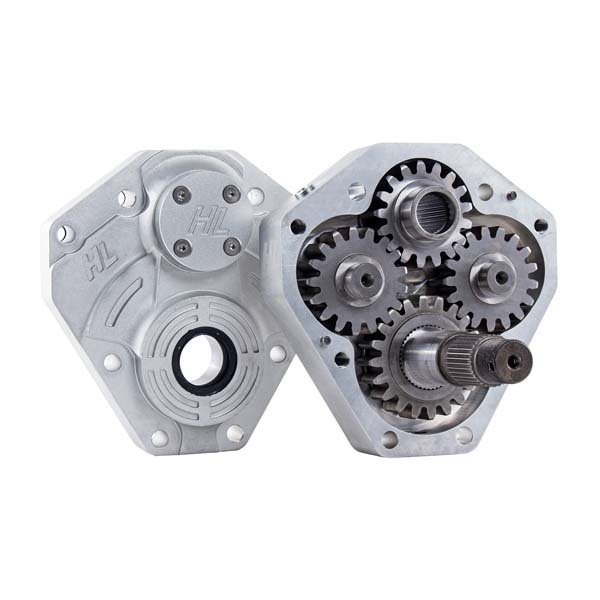

This portal gear lift kit for Maverick X3 features a 15% dual idler gear reduction that distributes load across twice as many gear teeth. The advanced dual idler gear system significantly reduces drivetrain stress while improving torque transfer to the wheels.

Whether you’re riding deep mud, climbing rocky terrain, or pushing through high-speed desert trails, this 4 inch portal gear lift kit for Maverick X3 delivers the clearance, durability, and performance needed to take your Can-Am Maverick further.

Key Features

• 4 Inch Portal Lift – Increases ground clearance for improved off-road capability.
• 15% Dual Idler Gear Reduction – Improves torque delivery while reducing drivetrain strain.
• Dual Idler Gear System – Spreads load across twice the gear teeth to reduce wear.
• Forged Portal Gear Boxes – Stronger than billet and cast aluminum housings.
• Precision Ground Stainless Steel Rotors – Slotted rotors improve braking performance.
• Kevlar Fiber Gaskets – Oil and coolant resistant sealing system.

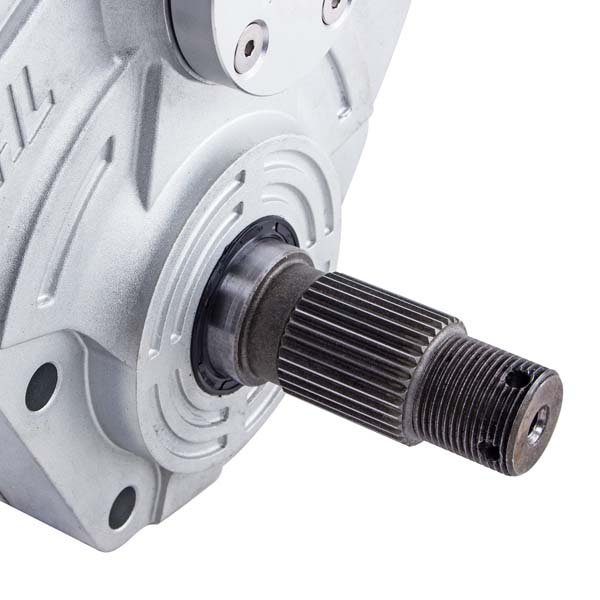

• Triple Seal Input Shaft – Prevents water intrusion and oil leaks.
• Heavy-Duty 5/16″ Steel Backing Plates – Reinforced for maximum durability.
• Optional Gearbox Venting – Helps reduce heat buildup and extend gasket life.

Technical Specifications

• Lift Height: 4 Inches
• Gear Reduction: 15% Dual Idler
• Gear Material: Heat-treated alloy steel
• Gear Box Construction: Forged housing
• Rotor Type: Precision ground stainless steel
• Seal System: Dual spindle seals and triple input shaft seal
• Kit Includes: Four portal gear boxes

Tire Fitment

• Maximum Tire Size with Portal: 33 inches
• Maximum Tire Size with Forward Arms: 35 inches

Wheel Requirements

• Minimum Wheel Size: 14 inches
• 14 inch factory wheels require a 1 inch spacer
• 14 and 15 inch wheels cannot exceed 4.5 inch backspacing
• 16 inch or larger wheels cannot exceed 5 inch backspacing

Vehicle Compatibility – Can-Am Maverick X3

This portal gear lift kit for Maverick X3 is designed for multiple Can-Am Maverick X3 models from 2017 through 2026, including Turbo, Turbo R, Turbo RR, DS, RS, X DS, X RS, X MR, and X RC trims.

Why Choose This Portal Gear Lift Kit for Maverick X3?

The High Lifter Portal Gear Lift Kit for Maverick X3 is built for riders who demand strength, reliability, and improved off-road performance. With forged portal gear boxes, advanced sealing technology, and a torque-enhancing dual idler gear system, this portal lift increases ground clearance while protecting critical drivetrain components.

If you want to run larger tires, improve torque delivery, and upgrade your Can-Am Maverick for extreme terrain, this 4 inch portal gear lift kit for Maverick X3 delivers the performance serious riders expect.

Cross-reference part/SKU numbers: PGL-415DI-CMX3, 73-14454
