Can-Am X3 Front Control Arm Link Bar Kit | High Lifter

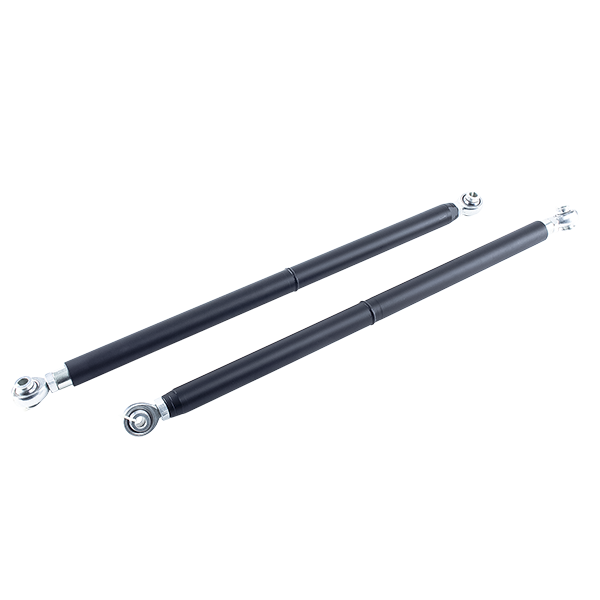

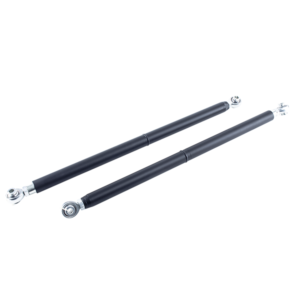

Can-Am X3 Front Control Arm Link Bar Kit

Protect your suspension from hard front impacts with the Can-Am X3 Front Control Arm Link Bar Kit by High Lifter. Built for select Can-Am Maverick X3 models, this front control arm support kit helps reinforce your suspension against impacts from rocks, logs, deep mud recoveries, rough trails, jumps, and other demanding off-road conditions.

Control arms are strongest against side-to-side force but can be more vulnerable to front and rear impact stress. When a front wheel hits an obstacle or comes to a sudden stop, the force can bend control arms or damage frame tabs. This High Lifter Can-Am X3 Front Control Arm Link Bar Kit adds an extra layer of protection by tying the front control arm area together with adjustable support bars designed to reduce stress on expensive suspension components.

Key Features

• Front control arm protection: Helps protect control arms and frame tabs from hard front-impact forces.
• Adjustable link bars: Offers up to 10 inches of length adjustability for semi-universal fitment on compatible setups.
• Heavy-duty clamp collars: Available for 1-1/4-inch or 1-1/2-inch DOM-style control arm tubing.
• 1/4-inch mounting plates: Built for added strength and improved suspension support.

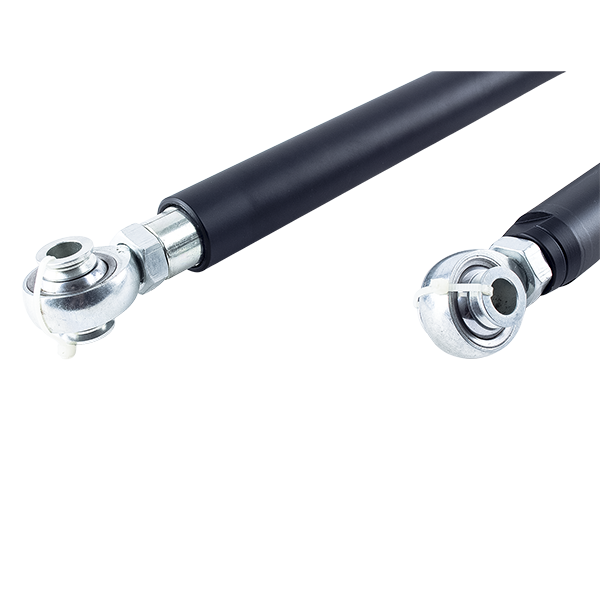

• Heat-treated chromoly heim joints: 3-piece heim joints provide superior strength and dependable movement.
• Bolt-on design: Installs with included mounting hardware and only minor drilling required.
• Factory skid plate templates: Includes templates for easier trimming of factory skid plates on most models.
• Powder coated finish: Adds durability and corrosion resistance for harsh off-road conditions.
• Patent-pending adjustable design: Industry-first adjustable control arm link bar design engineered by High Lifter.

Technical Specifications

• Brand: High Lifter
• Product Type: Front control arm link bar kit
• Compatible Vehicle: Can-Am Maverick X3
• Position: Front suspension
• Adjustability: Up to 10 inches of length adjustment
• Clamp Sizes: 1-1/4 inch or 1-1/2 inch DOM tubing clamp options
• Mounting Plates: 1/4-inch steel mounting plates
• Joint Type: 3-piece heim joints
• Joint Material: Heat-treated chromoly
• Finish: Powder coated
• Installation: Bolt-on installation with minor drilling required
• Hardware: Mounting hardware included
• Patent Reference: US 11,364,759 B1

Installation Requirements

• Requires 1-1/4-inch or 1-1/2-inch DOM tubing at the control arm.
• Works with Big Lift Kits that are 3 inches or greater.
• Steering stops are required, regardless of lift kit, big lift kit, or forward arm setup.
• 1-1/2-inch clamps are compatible with High Lifter Apexx Control Arms.
• This kit is not compatible with SuperATV Atlas control arms.

Compatibility / Applications

This Can-Am X3 Front Control Arm Link Bar Kit fits select 2017–2025 Can-Am Maverick X3 models, including Maverick X3 RS, X rs, X mr, X rc, Max, Turbo R, Turbo RR, 72-inch, and Smart-Shox configurations listed in the fitment data.

Why Choose This Product?

If you ride aggressively through mud, rocks, wooded trails, or lifted off-road terrain, this High Lifter Can-Am X3 Front Control Arm Link Bar Kit is a smart protection upgrade. It helps reinforce vulnerable front suspension areas, supports control arm durability, and reduces the risk of bending or breaking costly components during sudden front-wheel impacts.

Before installation, inspect your control arms, bushings, steering stops, frame tabs, and related suspension components. Confirm clamp size compatibility before ordering to ensure the kit matches your control arm tubing setup.

Cross-reference part/SKU numbers: 79-15291, 79-15290, CAL-F-CMX3-HD, CAL-F-CMX3
